Gas Booster

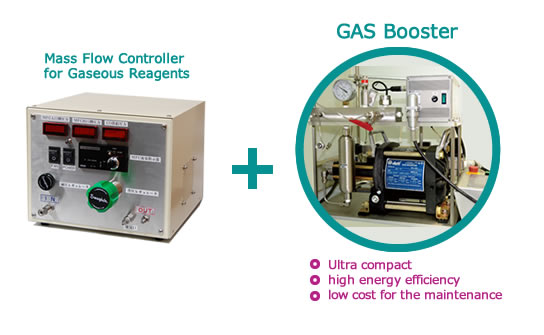

Ultra compact gas booster for making high pressure gas has been developed, which is available for micro flow reactions, coupled with the use of mass flow controller for gaseous reagents.For example 0.6 MPa of inlet pressure can be boosted up to 30 MPa of output pressure.

  • Ultra compact size, consistent with space saving
  • Low energy equipment
  • Oil-free system available for a variety of gaseous reagents
  • Cooling unit is equipped for exit gas to suppress heat evolution by gas compression

Gas Booster /Specifications  Standard（nitrogen gas）

  NEO60-40/17 NEO90-40/17 NEO200-60/24
Maximum Capacity
（NL/min) 		40 60 140
Inlet Pressure（MPa) 0.55
Discharge Pressure（MPa) ～30
compression technology Two steps compression technology
Electrical machinery(kW) 2.2 2.2 3.7
Cooling system water cooling
Size(mm) 800(W)×400(D)×450(H) 800(W)×400(D)×450(H) 1200(W)×480(D)×550(H)
Options Pressure controller/Control board/ Chiller unit/Air dryer

Gas Booster /Specifications  Standard（nitrogen gas）

Application gas consumption 　1Ncc～20Ncc/minの反応
Type AG75-12G0058
Pressure accumulator Bulk 150～250cc
Inlet pressure (Mpa) 0.5～0.6MPa
Discharge pressure(Mpa) ～30
Compression technology Compression air driving system 1st step cylinder
Cooling system
 Air cooling
Power AC100V　50/60Hｚ　Single phase　３A
Size(mm) 450(W)×250(D)×433(H)
Gross Weight 45ｋｇ
※Customizable by type of gas
※Pressure filling time will vary depending on using capacity compressor
