To obtain the optimum reaction condition, the PC-controlled flow Microreactor System is superior to the conventional batch system.

A drawback of general flow chemistry is a tedious setup procedure for changing reaction conditions one by one to get the optimum result. The PC-controlled flow Microreactor System makes it possible to obtain the optimum reaction condition in a reasonably short time. This system was developed by taking account of the claims by bench scientists in pharmaceutical companies.

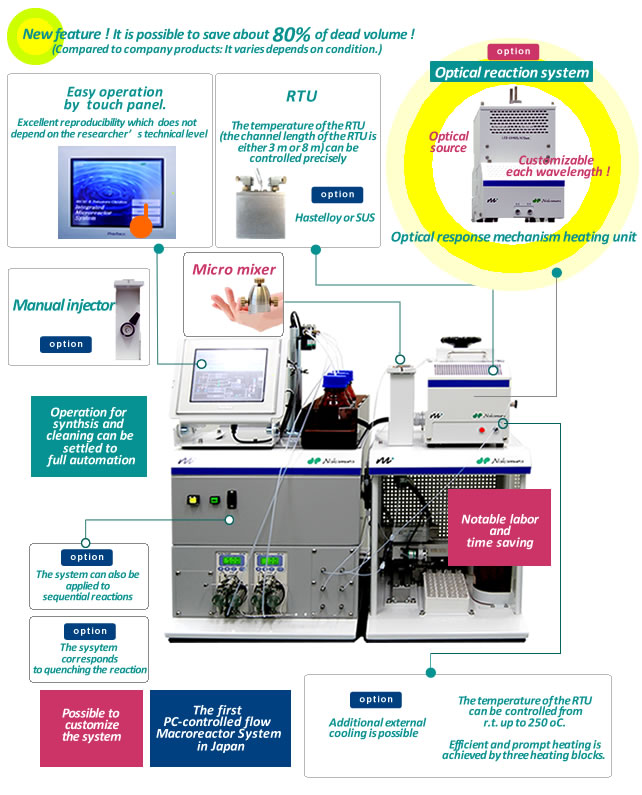

• The first PC-controlled flow Macroreactor System in Japan
• Up to 20 flow-reaction conditions can be programmed. Automatic sample collection equipment is also attached
• Operation for synthsis and cleaning can be settled to full automation
• The equipment is small and may be settled easily in a conventional fume food
• Possible to give a response for optical reaction ！Customizable each wavelength
• New feature ! It is possible to save about 80% of dead volume !
  (Compared to company products: It varies depends on condition.)


Example of chemical reaction

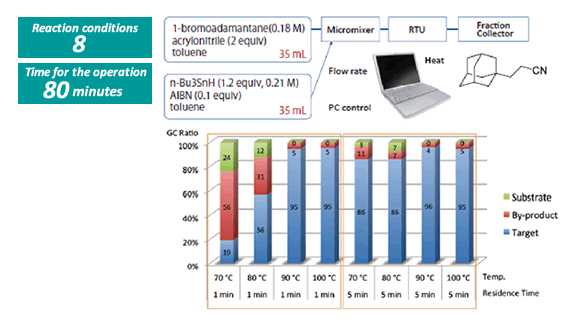

①    Giese reaction

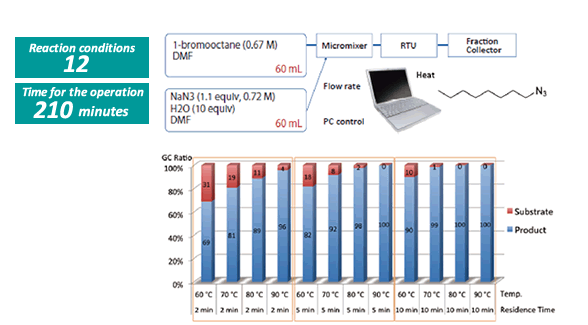

②    Diazotization reaction

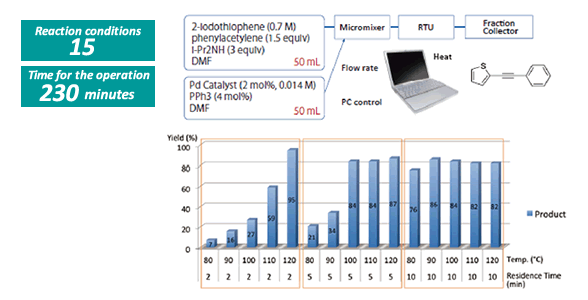

③    Sonogashira coupling reaction
