ZSM-5      Hydrophobic

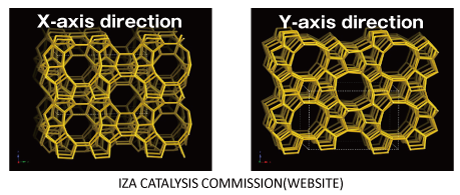

ZSM-5 is a representative high silica synthetic zeolite, its structural cord is MFI, the unit cell composition is
Nan[AlnSi96-nO192]･xH2O. Composition can be freely changed in the range of n<27 by control of Al concentration
during synthesis process.
The hydrophobicity of ZSM-5 will increase with decreasing Al concentration. In particular, ZSM-5 that does not
inclued Al (n=0) is called silicalite-1 and has high hydrophobicity. The pore size is slightly larger than the benzene
ring and it is known to exhibit selectivity specific to the catalytic reaction of aromatic hydrocarbons. ZSM-5 is
widely used as a catalyst in petrochemical products, and is also used as a hydrophobic adsorbent. Furthermore,
it is also helpful as a material for automobile exhaust gas purification catalyst.
By nano-sizing ZSM-5, we believe that it can improve several performances as a catalyst and increase adsorption speed as an adsorbent.
【Reference:ゼオライトの科学と工学（講談社）】

ZSM-5

Particle size FE-SEM        *The average particle sizes are not guarantee values.

Particle size FE-SEM  ZSM

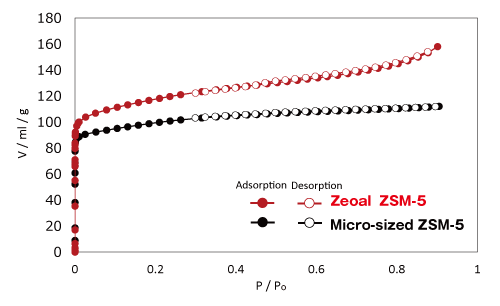

Nitrogen adsorption/Desorption isotherm

Nitrogen adsorption


Crystallinity      XRD Pattern

Crystallinity

Practical  data

Acetaldehyde  adsorption  test

Acetaldehyde
